George von Arx @ Swiss Federal Institute for Forest, Snow and Landscape Research


Measured variables count, anatomy, surface
Operating system windows
Licence freeware
Automation level automated
Plant requirements tree
Export formats xls
Other information Requires Image Pro Plus

Scientific article(s)

ROXAS – A new tool to build centuries-long tracheid-lumen chronologies in conifers
Georg von Arx, Marco Carrer
Dendrochronologia, 2013 View paper

Similar tools

Other tools for the analysis of shoot:

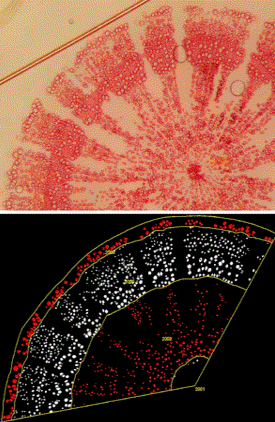

ROXAS is a specialized image analysis tool for quantifying xylem anatomy in circular and linear samples of angiosperms and conifers. The strength of ROXAS is to process images of entire samples, including up to 1,000,000 cells and more than 100 annual rings in one step. A very recent improvement is the measurement of cell wall thickness of all recognized cells (conifer tracheids, to some extent angiosperm fibers). ROXAS can also automatically handle – to some degree – image and samples deficiencies such as poor contrast and protrusions from cell walls. The results of automatic analysis are visually represented as vector layers over the original image. In most cases some manual editing is required, because no system can remain selective while accounting for the full range of (anatomical) variation in nature or all preparation artifacts. ROXAS offers a toolbox with efficient tools for all kind of manual editing such as deleting, modifying, drawing and undoing of cell lumen outlines and ring borders. Since the largest cells are typically most critical for ecological studies, there is also a tool for easily quality controlling the largest cells. Data output is into well-organized MS Excel files. Any existing analysis can be re-loaded without re-calculation at any time for checking or refining. Several batch operation functions help to reduce user time to a minimum.

Source: ROXAS webpage
