Center for Plant Integrative Biology @ University of Nottingham


Measured variables length, curvature, n-branches
Operating system windows
Licence open-source, freeware
Automation level automated
Plant requirements Arabidopsis, seedling
Export formats csv
Other information -

Scientific article(s)

High-throughput feature counting and measurement of roots
Asad Naeem, Andrew P. French, Darren M. Wells, Tony P. Pridmore
Bioinformatics, 2011 View paper

Similar tools

Other tools for the analysis of root-system, single-root:

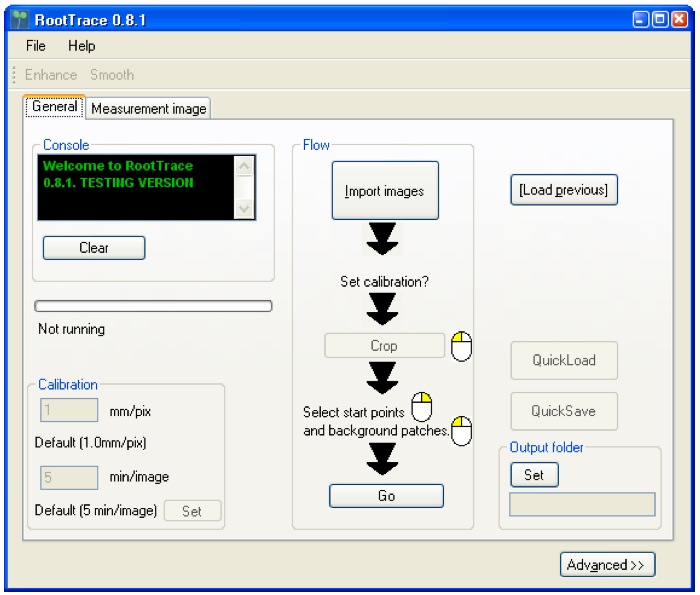

RootTrace is a software tool being developed at CPIB to allow the automatic and high throughput measure of root length, and extra associated measures such as curvature. The user must supply start points for each root, and exemplar patches of nearby background. The software will then trace the main root to the tip, in every image in a timeseries, and record the results. The original RootTrace tool has proved successful in measuring primary root lengths across time series image data. Biologists have shown interest in using the tool to address further problems, namely counting lateral roots to use as parameters in screening studies, and measuring highly curved roots. To address this, the software has been extended to count emerged lateral roots, and the tracking model extended so that strongly curved and agravitropic roots can be now be recovered.

Source: RootTrace website (CPIB)
